360KW-800KW power diesel generating set

Category:

General description:

product description

technical parameter

Cummins Generators Engine

1. Generator set standard configuration:

1.1 Generator set base frame: The whole generator set system is placed on the heavy steel frame, all welded structure, can accurately calibrate and support the engine/electrosphere assembly. High efficiency rubber shock absorbers are installed between the chassis and the engine/ball. It does not require a very thick concrete base to be used safely and reliably.

1.2 Electric starting system: Adopts 24 volt DC starting motor.

1.3 Battery Charging System: A 24 volt DC rechargeable generator and regulator powered by a diesel engine.

1.4 radiator: The radiator of the tank is cooled by a fan driven by the diesel engine. It can still play the ideal heat dissipation effect when the ambient temperature is 45℃ under full load condition.

1.5 Exhausting silencer System: Each generator set is standard equipped with grade one silencer

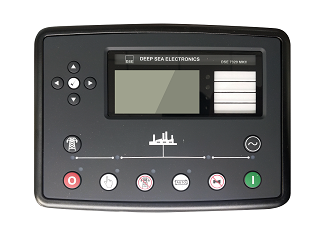

1.6 Full automatic intelligent control protection system.

2. Feature of Cummins KTA19-G3A Generators Engine:
2.1 Best Power Performance, Low Fuel Consumption: Optimized design for power-train, air distribution system, combustion system, cooling system, lubrication system.
2.2 Robust Low Speed Torque, Perfect Transient Response: High performance turbocharger matched with Cummins supper-charging technology system.
2.3 More Steady, More Quiet: Designed with enhanced crankshaft assembly and power-train, full balanced and integral crankshaft.
2.4 Better Reliability, Durability, Lower Oil Consumption: Special designed seal of valve guide, integral cylinder block, built-in engine oil pump and oil water cooler, high-flow built in cooling water way design.

Generator set operating environment Conditions		Generator set technical specifications
operation condition	Indoor	starting time	10S-30S
maximum temperature	+50℃	Voltage fluctuation rate	±0.5%
Maximum daily mean temperature	+40℃	Frequency fluctuation rate	≤±0. 5%
Maximum annual mean temperature	+30℃	voltage settling time	≤1S
Minimum annual mean temperature	+30℃	Frequency stabilization time	≤1S
Relative humidity	-5℃	waveform distortion factor	≤5S
shock resistance：	M8 earthquake	Altitude：	≤1000 m

Standby 500kw diesel generator prime 450kw power genset with Cummins engine KTA19-G3A

Engine Model	KTA19-G3A
Engine manufacturer	CUMMINS
Number of Cylinders	6 cylinders
Cylinders arrangement	Vertical in line
Cycle	4 stroke
Aspiration	Turbocharged after water cooled
Bore×Stroke	159mm x159mm
Displacement	18.9L
Compression ratio	14.5:1
Prime Power/Speed	507 kw/1800rpm
Standby Power/Speed	563 kw/1800rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	45.42L
Fuel Consumption at 100% Load	213g/kw.h
Starter Motor	DC24V
Alternator	DC24V

Standby 500kw diesel generator prime 450kw power genset with Cummins engine KTA19-G3A

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	450KW
Frequency/speed	60Hz/1800rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
